The Most Sensitive Micro Volume and cuvette Spectrophotometer.

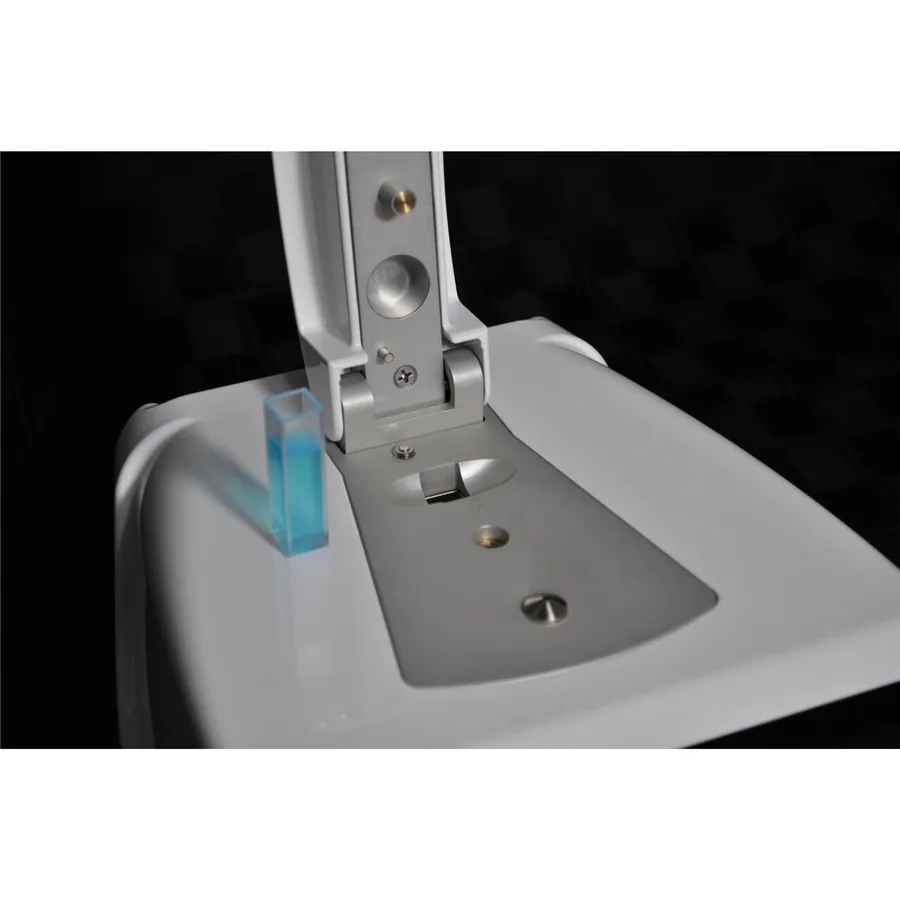

Enables up to 10mm pathlength measurements using standard quartz or disposable cuvettes extending the UV-Vis lower detectible limit. The built-in cuvette heater controls temperatures for Kinetics studies.
Using the 1 cm cuvette mode enables a lower detection limit 20 times below what is available on the microvolume mode of the DS-11 without the use of fluorescent dyes to gain sensitivity.
The DS-11 combines unique hardware and software features to deliver unmatched confidence in sample accuracy, performance and reliability.
• SmartPath® Technology – real time, precise pathlength control delivered every time.
• Exceptional for proteins – BridgeTesting® eliminates broken sample columns common on other platforms.
• Contamination Alerts – Instant sample QC guidance.
• Calibration and Maintenance Free. No measurement drift, no service down-time. Accurate results every time.
Easy to learn. Fast to use.

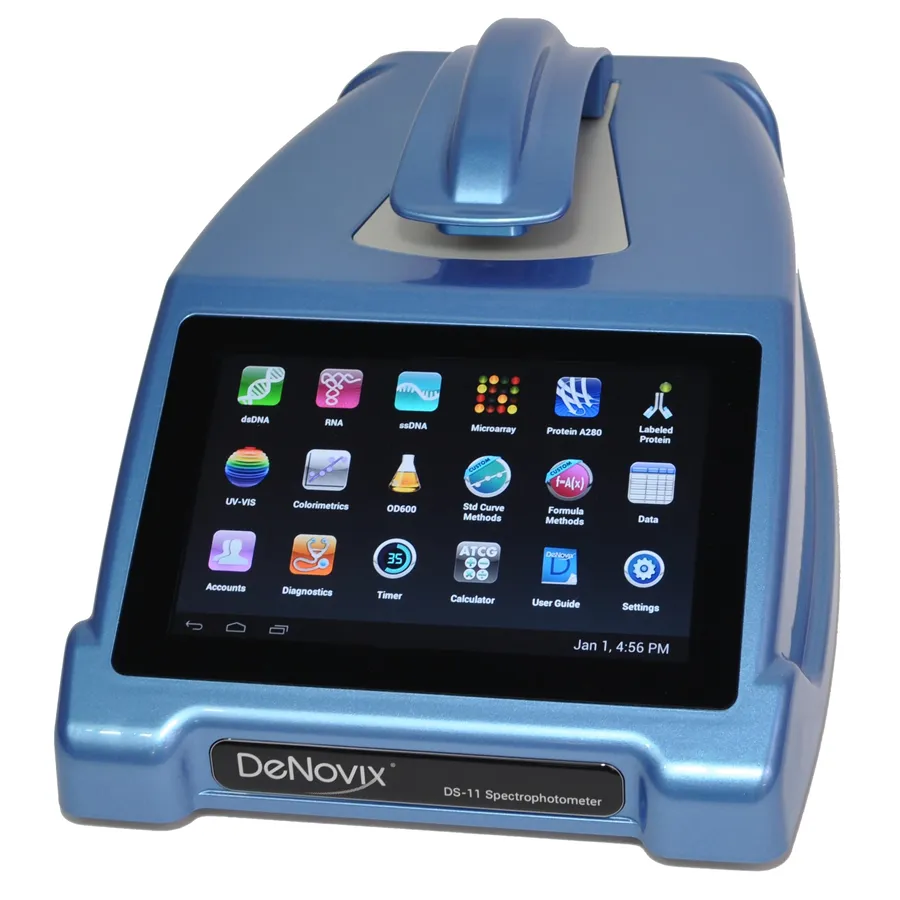

DS-11 instruments feature the most powerful and intuitive software of its type. Designed by life scientists, pre-installed EasyApps® and a breakthrough Android™ touchscreen interface. ensure error-free operation and sample to data in under 4 seconds. Every instrument is ready to measure right out of the box – no PC set-up or software installation.
|Wavelength Range (nm)||190 to 840|
|Absorbance range microvolume (AU 1 cm eq.)||0,015 to 750|
|Absorbance range cuvette (AU 1 cm eq)||0,0008 to 1,5|
|Detection limit microvolume||0,75 ng/ul dsDNA or 0,04 mg/ml BSA|
|Detection limit cuvette (1 cm)||0,04 ng/ul dsDNA or 0,002 mg/ml BSA|
|Sample size (ul)||0,5 to 1|
|Cuvette Temperature (°C)||37 to 45|
|Measurement Time (s)||2|
|Dimensions w x d x h (cm)||20 x 33 x 16|
