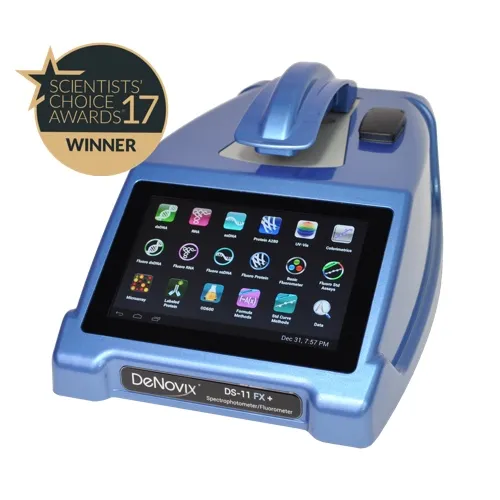

The most sensitive 1µL UV-Vis absorbance combined with the most flexible and precise fluorometer in one compact, maintenance-free instrument.
Equip your lab for today’s quantification requirements and for future assay challenges. The choice of microvolume or cuvette absorbance and fluorescence methods delivers unmatched flexibility and dynamic range. Coupled with the DeNovix dsDNA quantification assays, a range of 0.5 pg/µL to 37500 ng/µL can be rapidly measured.
Total Measurement Confidence
The DS-11 FX combines unique hardware and software features to deliver unmatched confidence in sample accuracy, performance and reliability.
• SmartPath® Technology – real time, precise pathlength control delivered every time.
• Exceptional for proteins – BridgeTesting® eliminates broken sample columns common on other platforms.
• Calibration and maintenance free – no measurement drift, no service down-time. Accurate results every time.
SmartQC monitors every sample measured for the presence of common contaminants, highlights these samples to the user and advises on potential issues. SmartQC also solves the problem of samples being left to dry on the measurement surface by monitoring the sample measurement and cleaning process and warning when the sample has not been removed.
Easy to Learn, Fast to Use
The DS-11 FX Series instruments feature the most powerful and intuitive software of its type. EasyApps® software is designed by life scientists and combines with a breakthrough Android™ touchscreen interface to ensure error-free operation and sample to data in under 4 seconds. Every instrument is ready for absorbance and fluorescence measurements right out of the box – no PC set-up or software installation.
|Wavelength Range (nm)||190 to 840|
|Absorbance range microvolume (AU 1 cm eq.)||0,015 to 750|
|Absorbance range cuvette (AU 1 cm eq)||0,0008 to 1,5|
|Detection limit microvolume||0,75 ng/ul dsDNA or 0,04 mg/ml BSA|
|Detection limit cuvette (1 cm)||0,04 ng/ul dsDNA or 0,002 mg/ml BSA|
|Sample size (ul)||0,5 to 1|
|Cuvette Temperature (°C)||37 to 45|
|Measurement Time (s)||2|
|Dimensions w x d x h (cm)||20 x 33 x 16|
